Write a function that evaluates the groupings provided by k-means. It takes as input toyData (or a similar object), and a vector of possible k values. It returns a list of ...

1. data frame of 2 columns: k, and the mean intra cluster distances
2. a ggplot in which the points (samples) are colored according to the optimal value for k
3. a ggplot scatter plot in which x-axis is k and the y axis is the mean intra group distance

And, apply this function to the original data set (only first 2 principle components), which you can download here:

http://cahanlab.org/intra/training/bootcampJune2016/misc/day4_assignment_data.R

What is the optimal number of clusters that your iterative kmeans approach yields?

1. toydata
2. day4_assignment_data.R (all points from day 3)

Getting started. Adjust paths as needed.

source("../../misc/utils.R")
library(ggplot2)
toyData<-utils_loadObject("../../misc/day4_toydata.R")

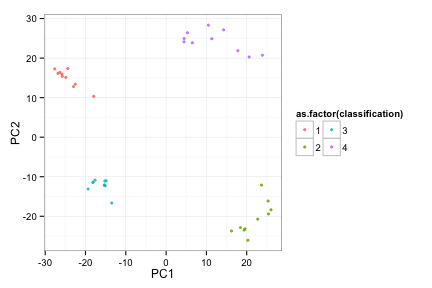

kmeansRes<-kmeans(toyData, 4)
kvals<-cbind(toyData, classification=kmeansRes$cluster)

ggplot(kvals, aes(x=PC1, y=PC2, colour=as.factor(classification)) ) + geom_point(pch=19, alpha=3/4, size=1) + theme_bw() +
guides(colour=guide_legend(ncol=1))

For this assignment, I found it useful to have a little helper function

afunc<-function(adat, k){
  kmeansRes<-kmeans(adat, k);
  kvals<-cbind(adat, classification=kmeansRes$cluster)
  ggplot(kvals, aes(x=PC1, y=PC2, colour=as.factor(classification)) ) +
     geom_point(pch=19, alpha=3/4, size=1) +
     theme_bw() +
     guides(colour=guide_legend(ncol=2))
}

afunc(toyData, 4)

compData<-utils_loadObject("../../misc/day4_assignment_data.R")

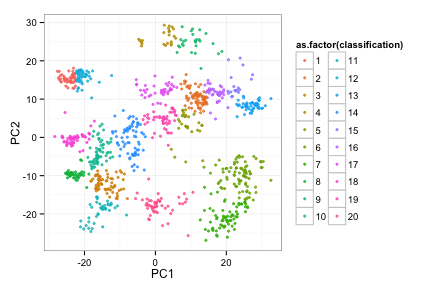

afunc(compData, 20)

eucDistV4<-function(vect1, vect2){
    sum((vect1-vect2)**2)**(1/2)
}

eucDistAll<-function(aMat){
    myDim<-nrow(aMat);
    ansMatrix<-matrix(NA, nrow=myDim, ncol=myDim);
    for(i in 1:myDim){
        for(j in 1:myDim){
            if(j<i){
                ansMatrix[i,j] <- eucDistV4(aMat[i,], aMat[j,]);
            }
        }
    }
    ansMatrix;
}

withinGrpDists<-function(aKvals){ # retuns a vector of the means of intra-cluster distances
  grpNames<-unique(as.vector(aKvals$classification));
  ans<-vector();
  for(grpName in grpNames){
    tmpMat<-aKvals[which(aKvals$classification==grpName),];
    ans<-append(ans, mean(eucDistAll(tmpMat), na.rm=TRUE)); #Can anyone guess na.rm?
  }
 ans;
}

Part 1:

doRoc<-function(datMat, ks=2:20){
  ans<-list(); # this is the list that will be returned upon completion
  micds<-vector(); # holds means of intra-cluster distances
  for(k in ks){
    cat(k, " ");
    tmpKres<-kmeans(datMat, k, iter.max=100);
    kvals<-cbind(datMat, classification=tmpKres$cluster);
    icds<- withinGrpDists(kvals);
    micds<-append(micds, mean(icds, na.rm=TRUE)) # why is na.rm needed here?
  }
  cat("\n");
  ansDF<-data.frame(k=ks, micds=micds);
  bestK<-ansDF[which.min(micds),]$k;
  kResFinal<-kmeans(datMat, bestK);
  kvals<-cbind(datMat, classification=kResFinal$cluster);

plot1<-ggplot(kvals, aes(x=PC1, y=PC2, colour=as.factor(classification)) ) +
     geom_point(pch=19, alpha=3/4, size=1) +
     theme_bw() +
     guides(colour=guide_legend(ncol=2));

  plot2<-ggplot(ansDF, aes(x=k, y=micds)) +
     geom_point(pch=19, alpha=1, size=1) +
     theme_bw();

  ans[[1]]<-ansDF;
  ans[[2]]<-plot1;
  ans[[3]]<-plot2;
  ans;
}

Fetch the code from http://cahanlab.org/intra/training/bootcampJune2016/misc/day4functions.R

source("../../misc/day4functions.R");
toyRes1<-doRoc(toyData)

## 2  3  4  5  6  7  8  9  10  11  12  13  14  15  16  17  18  19  20

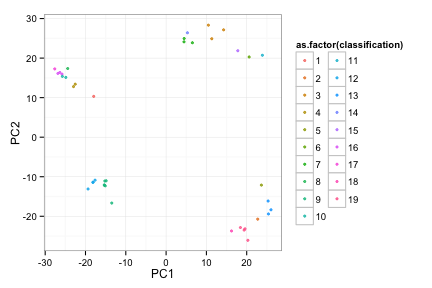

toyRes1[[2]]

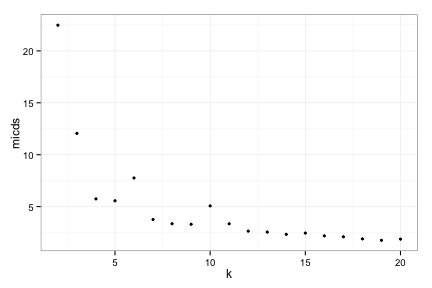

toyRes1[[3]]

How can we make the optimal clustering jive with our intuition?

doRocV2<-function(datMat, ks=2:20){
  nPts<-nrow(datMat);                                   ### HERE
  ans<-list(); # this is the list that will be returned upon completion
  micds<-vector(); # holds means of intra-cluster distances
  for(k in ks){
    cat(k, " ");
    tmpKres<-kmeans(datMat, k, iter.max=100);
    kvals<-cbind(datMat, classification=tmpKres$cluster);
    icds<- withinGrpDists(kvals);
    micds<-append(micds, mean(icds, na.rm=TRUE)* k/nPts) ### HERE
  }
  cat("\n");
  ansDF<-data.frame(k=ks, micds=micds);
  bestK<-ansDF[which.min(micds),]$k;
  kResFinal<-kmeans(datMat, bestK);
  kvals<-cbind(datMat, classification=kResFinal$cluster);

toyRes2<-doRocV2(toyData)

## 2  3  4  5  6  7  8  9  10  11  12  13  14  15  16  17  18  19  20

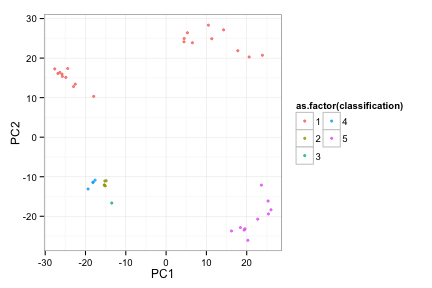

toyRes2[[2]]

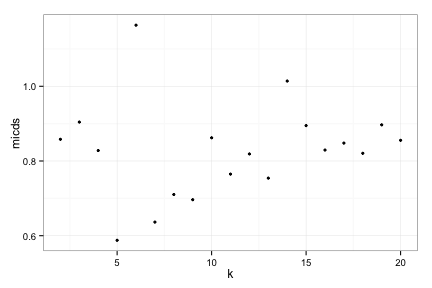

toyRes2[[3]]

Can we improve this further???

doRocV3<-function(datMat, ks=2:20, penalize=TRUE){
  nPts<-nrow(datMat);
  ans<-list(); # this is the list that will be returned upon completion
  micds<-vector(); # holds means of intra-cluster distances
  for(k in ks){
    cat(k, " ");
    tmpKres<-kmeans(datMat, k, iter.max=100);
    kvals<-cbind(datMat, classification=tmpKres$cluster);
    icds<- wGD2(kvals);                         ### HERE
    micds<-append(micds, mean(icds, na.rm=TRUE)* k/nPts)
  }
  cat("\n");
  ansDF<-data.frame(k=ks, micds=micds);
  bestK<-ansDF[which.min(micds),]$k;
  kResFinal<-kmeans(datMat, bestK);
  kvals<-cbind(datMat, classification=kResFinal$cluster);

wGD2<-function(aKvals, penalize=TRUE){
  grpNames<-unique(as.vector(aKvals$classification));
  clusterSizes<-vector();
  ans<-vector();

  for(grpName in grpNames){
    xi<-which(aKvals$classification==grpName)
    tmpMat<-aKvals[xi,];
    ans<-append(ans, mean(eucDistAll(tmpMat), na.rm=TRUE));
    clusterSizes<-append(clusterSizes, length(xi)); # keep track of cluster size
  }
  if(penalize){
     ans[which(clusterSizes==1)]<-max(ans, na.rm=TRUE); # set penalty to max micd
  }
 ans;
}

toyRes3<-doRocV3(toyData)

## 2  3  4  5  6  7  8  9  10  11  12  13  14  15  16  17  18  19  20

toyRes3[[2]]

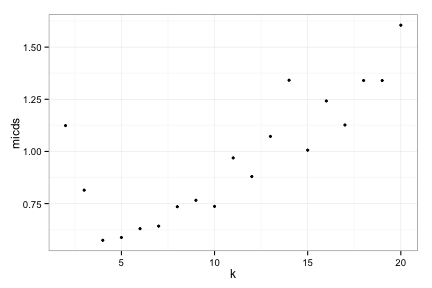

toyRes3[[3]]

compRes3<-doRocV4(compData) # explain how 4 is faster

## 2  3  4  5  6  7  8  9  10  11  12  13  14  15  16  17  18  19  20

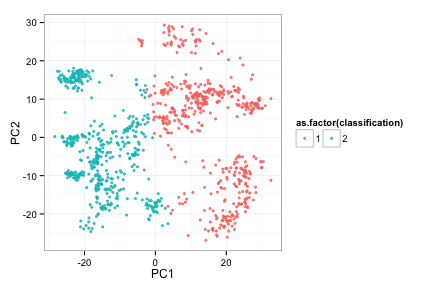

compRes3[[2]]

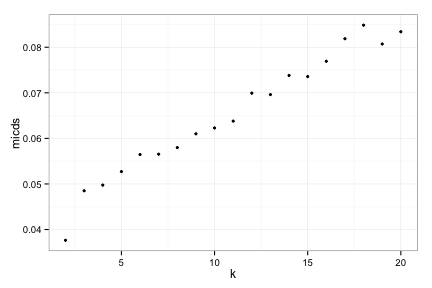

compRes3[[3]]

1. Explore silhouette as a metrix of clustering goodness
2. Play around with the scoring to see if you can devise a more generally applicable and satisfactory metric
3. Use R!
