Computation Boot Camp

Day 3 Unsupervised Analysis

Principal Component Analysis (PCA)

  1. For data exploration and visualization
  2. Reduce the dimendionality of large data set
  3. Maintain structure of the data

Developmental trajectory of murine cardiomyocytes

PCA -- how does it work?

Input: matrix where rows are variables and columns are entities (e.g. rows=genes, columns=samples).

Computation: Iteratively search for loadings that maximize the variance (var = average of the squared differences from mean)

Outputs:
(A) Loadings matrix of the normalized contribution of a gene to a PC

  • columns correspond to 1st, 2nd, 3rd, ..., PCs
  • rows correspond to genes

(B) Scores matrix

  • columns correspond to samples
  • rows correspond to PC

How to do this in R?

Take a look at the data

dim(expRun)

## [1] 2000 1000

expRun[1:3,1:3]

##          GSM501434 GSM287580 GSM287575
## Copg1     5.848932  5.569252  5.615026
## Atp6v0d1  7.841972  8.928719  8.832163
## Golga7    8.573669  8.924030  8.908230

Take a look at the data

dim(stRun)

## [1] 1000   10

stRun[1:3,c(2,3,4,10)]

##           sample_id                                            sample_name
## GSM501434 GSM501434 LX_ND_10_36_9_CH12LX_T_1_111908_Mouse430_2_RSTMSU601_9
## GSM287580 GSM287580            Memory Tx B cell (FG)_2nd generation screen
## GSM287575 GSM287575          Naive AA4.1- B cell (A)_2nd generation screen
##           description1 description6
## GSM501434        bcell        blood
## GSM287580        bcell        blood
## GSM287575        bcell        blood

Run PCA

system.time(xFF2<-prcomp(t(expRun), center=T, scale=T))

##    user  system elapsed
##   7.328   0.087   7.421

Glimpse at the results

class(xFF2)

## [1] "prcomp"

names(xFF2)

## [1] "sdev"     "rotation" "center"   "scale"    "x"

dim(xFF2$rotation) # loadings

## [1] 2000 1000

dim(xFF2$x) # scores

## [1] 1000 1000

How much total variation does each PC explain?

pcaVals2<-xFF2$x
pcaVals2<-data.frame(pcaVals2);
pcaVals2<-cbind(pcaVals2, stRun) # don't worry about this now...
varExpl2<-xFF2$sdev**2 / sum(xFF2$sdev**2)
varExpl2[1:5]

## [1] 0.14946926 0.08713941 0.06243711 0.06170882 0.05702081

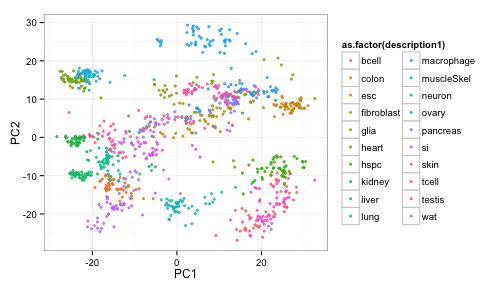

Finally, plot the results, color by cell type

ggplot(pcaVals2, aes(x=PC1, y=PC2, colour=as.factor(description1)) ) +
geom_point(pch=19, alpha=3/4, size=1) +
theme_bw() +
guides(colour=guide_legend(ncol=2))

plot of chunk unnamed-chunk-7

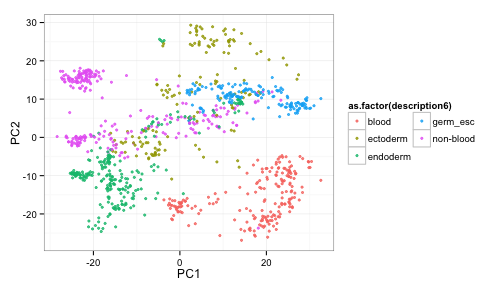

Plot the results, color by germ layer descended from

ggplot(pcaVals2, aes(x=PC1, y=PC2, colour=as.factor(description6)) ) +
geom_point(pch=19, alpha=3/4, size=1) +
theme_bw() +
guides(colour=guide_legend(ncol=2))

plot of chunk unnamed-chunk-8

What genes contribute most to the PCs?

g1<-names(sort(abs(xFF2$rotation[,1]), decreasing=T)[1:25])
g2<-names(sort(abs(xFF2$rotation[,2]), decreasing=T)[1:25])
g1[1:4]

## [1] "Cct2"   "Cct5"   "Rbm12"  "S100a1"

g2[1:4]

## [1] "Elf1"   "Ikbke"  "Ifi47"  "Kifap3"

Overlay the expression of these genes on PCA plots

library(RColorBrewer)
ColorRamp <- colorRampPalette(rev(brewer.pal(n = 7,name = "RdYlBu")))(100)
pcaVals2<-cbind(pcaVals2, t(expRun))

ggplot(pcaVals2, aes(x=PC1, y=PC2, colour=Cct2) ) +
geom_point(pch=19, alpha=3/4, size=1) +
theme_bw() +
scale_colour_gradientn(colours=ColorRamp)

plot of chunk unnamed-chunk-10

Overlay the expression of these genes on PCA plots

library(RColorBrewer)
ColorRamp <- colorRampPalette(rev(brewer.pal(n = 7,name = "RdYlBu")))(100)
pcaVals2<-cbind(pcaVals2, t(expRun))

ggplot(pcaVals2, aes(x=PC1, y=PC2, colour=Elf1) ) +
geom_point(pch=19, alpha=3/4, size=1) +
theme_bw() +
scale_colour_gradientn(colours=ColorRamp)

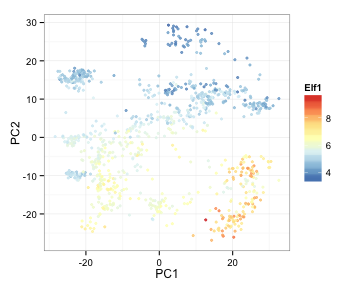

plot of chunk unnamed-chunk-11

Assignment
